Sales » Yamaha » Grizzly 450 Auto. 4x4 IRS
Model Quick Search

$6,699.00

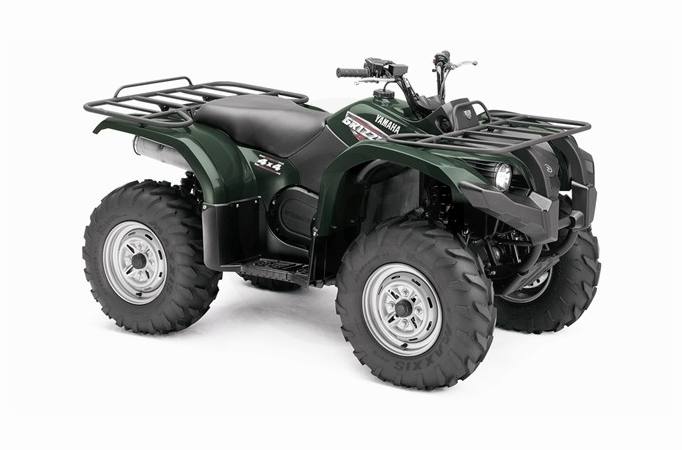

2009 Yamaha Grizzly 450 Auto. 4x4 IRS
Request a Quote Financing Calculator Request a Brochure
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • Grizzly 450 Automatic 4x4 has the same great features as big brothers Grizzly 700 and 550, including four-wheel independent suspension, and it’s powered by a fuel-efficient liquid-cooled engine.
    • Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and class-exclusive all-wheel downhill engine braking in 4WD mode.
    • Industry-exclusive three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and class-exclusive fully locked differential 4WD—all with the simple push of a button. Override button allows engine to make maximum rpm in full Diff Lock mode.
    • Class-exclusive fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain.
    • Ground clearance of 10.8 inches and high-impact plastic skidplate improve maneuverability and undercarriage protection.
    • Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hourmeter, 4WD status, transmission position and clock.
    New for 2009
    • New Grizzly 700-inspired front-end styling boasts convenient waterproof storage compartment on the front fender.
    • The water-resistant DC outlet has been relocated to the side of the multifunction instrument panel for convenient access; automotive-style receptacle handles a wide range of accessories.
    • Seat is extra plush, more than 3/4-inch thicker with softer foam, resulting in more rider comfort at the same seat height with rider aboard as before.
    Engine Features
    • 421cc liquid-cooled, SOHC four-stroke single is rugged and powerful.
    • Semi-oval slide 33mm BSR Mikuni® carburetor and high-output DC-CDI ignition deliver fantastic throttle response and engine performance at all rpm.
    • Pushbutton electric starting is backed up by auxiliary recoil starter.
    • Stainless steel muffler and header design provides superior power characteristics, exhaust sound and durability.
    • Left-side–mounted (Hi/Lo/N/R/P) shift lever is easily accessible.
    • Large-capacity aluminum radiator provides maximum cooling efficiency and is positioned high in frame for optimal protection.
    • Compact engine design features a 45-degree cylinder angle for maximum ground clearance and lower seat height for quick, responsive steering and agility.
    • Gear-driven crankshaft balancer and rubber-damper engine mounts reduce vibration.
    • Specially designed drive system air intake vent prevents overheating and keeps water and mud from entering drive case.
    • Easy-access, tool-free air filter box.
    Chassis/Suspension Features
    • Lightweight chassis features outstanding durability with superior rigidity for class-leading agility and handling.
    • Light steering and a class-leading turning radius combine for increased comfort and incredible maneuverability—even in 4WD.
    • Fully independent four-wheel suspension features a doublewishbone suspension front and rear delivering 6.3 inches and 7.1 inches of travel, respectively, with five-way preload-adjustable shocks to ensure maximum tire contact—and comfort.
    • The sealed rear wet brake combines strong, consistent stopping power with greatly reduced maintenance requirements.
    • Large-diameter ventilated hydraulic front disc brakes deliver tremendous stopping power in a variety of conditions.
    • A multi-disc system running in hydraulic fluid, the sealed rear wet brake combines strong, consistent stopping power with greatly reduced maintenance requirements.
    • Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.
    • Heavy-duty composite front carry bar and CV joint guards help prevent damage to boot covers and won’t dent or rust.
    Additional Features
    • Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
    • Available in four colors, including Realtree® AP HD® Camouflage for true hunting performance.
    • 2-inch receiver hitch for outstanding towing capability.
    • Large-capacity, 4-gallon fuel tank has a built-in gauge and easy-to-reach petcock valve.
    • Water-resistant, large-capacity underseat storage box provides added convenience.
    • Wide, fully integrated floorboards keep rider’s feet dry and feature serrated footpegs for extra grip in wet conditions.
    • Large front and rear fenders with inner guards offer excellent mud/splash protection.
    • Easy-access, underseat marine-spec electrical components ensure maximum protection from the elements.
    • Dual, bright multi-reflector 30-watt Krypton bulb headlights with high and low beams; rear brake light.
    • Built in Newnan, GA, USA.
    Engine Specifications
    • Type: 421cc, 4-stroke, liquid-cooled single; SOHC
    • Bore x Stroke: 84.5mm x 75.0mm
    • Compression Ratio: 10.0:1
    • Carburetion: Mikuni® 33mm BSR
    • Ignition: DC-CDI
    • Starting System: Electric w/auxiliary pull
    • Transmission: Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
    • Drive Train: Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Chassis Specifications
    • Suspension/Front: Independent double wishbone; 5-way preload adjustment, 6.3-in travel
    • Suspension/Rear: Independent double wishbone; 5-way preload adjustment, 7.1-in travel
    • Brakes/Front: Dual hydraulic discs
    • Brakes/Rear: Sealed wet brake
    • Tires/Front: AT25x8-12
    • Tires/Rear: AT25x10-12
    Dimensions
    • Length: 78.5 x 43.0 x 44.1 in
    • Seat Height: 33.5 in
    • Wheelbase: 48.5 in
    • Turning Radius: 118 in
    • Ground Clearance: 10.8 in
    • Fuel Capacity: 4.0 gal
    • Dry Weight: 590 lb
    • Rack Capacity: 88 lb Fr./176 lb Rr.
    • Towing Capacity: 1102 lb w/2-in receiver hitch
    Other
    • Instrumentation: Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hourmeter, clock, gear position
    • Lighting: Dual 30W Krypton multi-reflector headlights & 21W/5W brakelight
    • Warranty: 6 Month (Limited Factory Warranty)
    • Colors: Black Metalic, Hunter Green, Steel Blue

    Specifications

    Engine
    Engine Type 4-stroke, liquid-cooled single; SOHC
    Displacement 421 cc
    Bore x Stroke 84.5 x 75.0 mm
    Cylinders Single
    Engine Cooling Liquid
    Fuel System Mikuni® 33 mm BSR
    Starting System Electric w/auxiliary pull
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment
    Front Travel 6.3 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT25x8-12
    Rear Suspension Independent double wishbone; 5-way preload adjustment
    Rear Travel 7.1 in.
    Rear Brake Type Sealed wet brake
    Rear Tires AT25x10-12
    Dimensions/Capacities
    Dry Weight 590 lb
    Front Rack Capacity 88 lbs
    Rear Rack Capacity 176 lbs
    Towing Capacity 1102 lbs w/2-in receiver hitch
    Fuel Capacity 4.0 gal
    Ground Clearance 10.8 in.
    Machine Dimensions (LxWxH) 78.5 x 43.0 x 44.1 in.
    Wheelbase 48.5 in.
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
    General
    Speedometer Digital LCD
    Odometer Digital LCD
    Lighting Dual 30W Krypton multi-reflector headlights & 21W/5W brakelight
    Colors Black Metalic, Hunter Green, Steel Blue
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Yamaha
    Model Grizzly 450 Auto. 4x4 IRS
    Style Utility
    MSRP* $6,699.00
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment
    Front Travel 6.3 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT25x8-12
    Rear Suspension Independent double wishbone; 5-way preload adjustment
    Rear Travel 7.1 in.
    Rear Brake Type Sealed wet brake
    Rear Tires AT25x10-12
    Frame
    Dimensions/Capacities
    Dry Weight 590 lb
    Front Rack Capacity 88 lbs
    Rear Rack Capacity 176 lbs
    Towing Capacity 1102 lbs w/2-in receiver hitch
    Fuel Capacity 4.0 gal
    Ground Clearance 10.8 in.
    Machine Dimensions (LxWxH) 78.5 x 43.0 x 44.1 in.
    Wheelbase 48.5 in.
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Final Drive
    Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
    Engine
    Engine Type 4-stroke, liquid-cooled single; SOHC
    Displacement 421 cc
    Bore x Stroke 84.5 x 75.0 mm
    Cylinders Single
    Engine Cooling Liquid
    Fuel System Mikuni® 33 mm BSR
    Starting System Electric w/auxiliary pull
    Alternator
    General
    Speedometer Digital LCD
    Tachometer
    Odometer Digital LCD
    Lighting Dual 30W Krypton multi-reflector headlights & 21W/5W brakelight
    Colors Black Metalic, Hunter Green, Steel Blue
    Warranty 6 Month (Limited Factory Warranty)
